| Height | 172 mm | |
|---|---|---|
| Depth | 144 mm | |
| Width | 147 mm | |
| Weight | 1.78 kg | |
| Rated voltage | 12 V | |
| Bearing type | Fluid Dynamic Bearing (FDB) | |
| Number of fans | 2 fan(s) | |
| Thermal Design Power (TDP) | 300 W | |
| Type | Air cooler | |
| Fan Diameter | 120/140 mm | |
| Package Type | Box | |
| Product colour | Black | |
| Guarantee | G024M | |
| Quantity per pack | 1 pc(s) | |
| Power consumption (typical) | 4.8 W | |
| Rotational speed (min) | 500 RPM | |
| Rotational speed (max) | 1800 RPM | |
| Maximum airflow | 61.25 cfm | |
| Fan noise level (max) | 29.3 dB | |
| Display size (HxV) | 44.6 x 53.6 mm | |

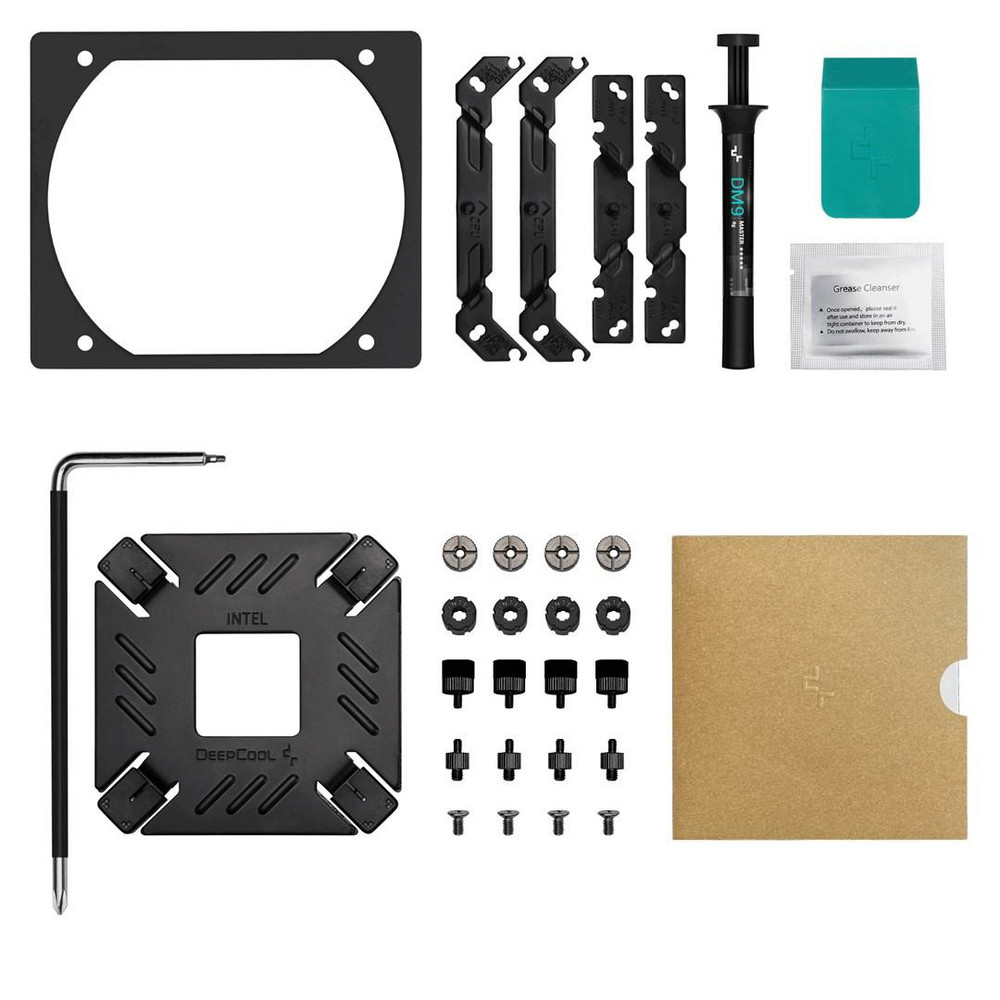

| Mounting kit | Yes | |
| Suitable location | Processor | |

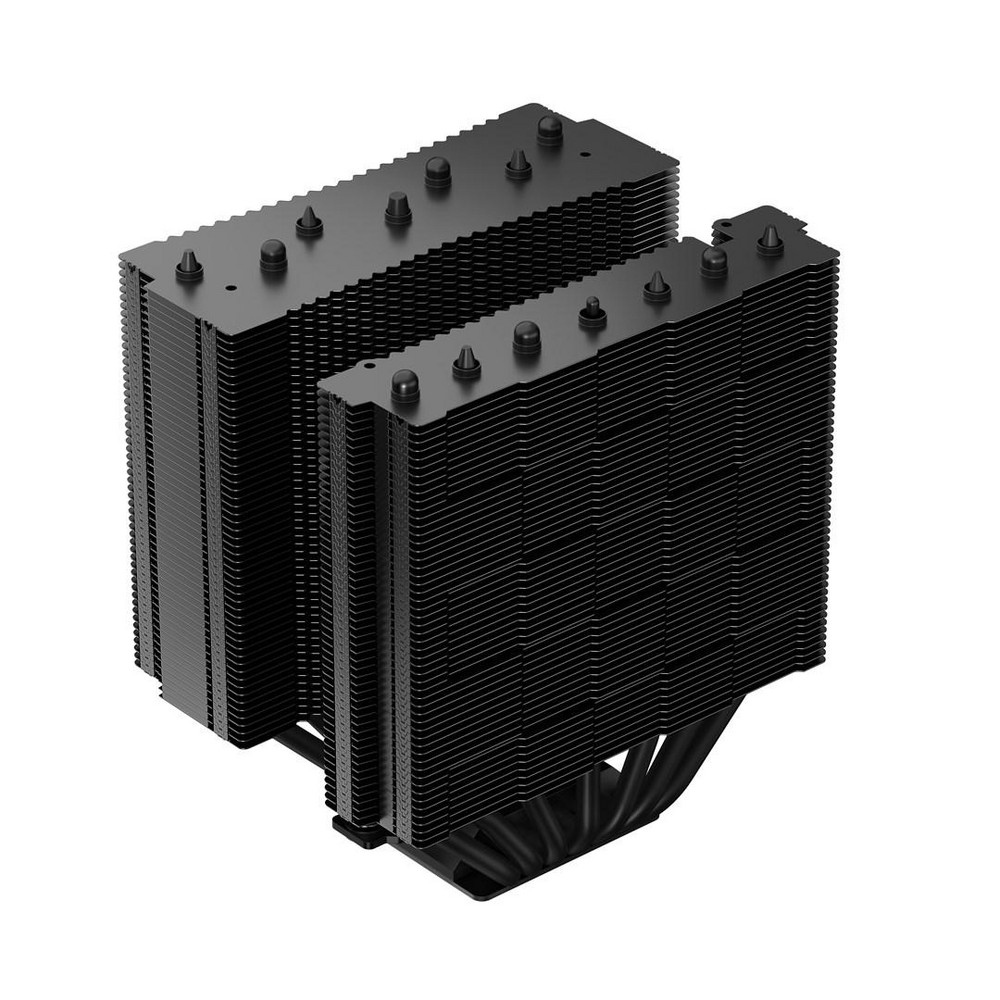

| Number of heat pipes | 7 | |
| Fan connector | 4-pin | |
| Fan voltage | 12 V | |
| Fan current | 0.2 A | |
| Radiator width | 14 cm | |
| Radiator height | 16 cm | |
| Heat pipes diameter | 6 mm | |

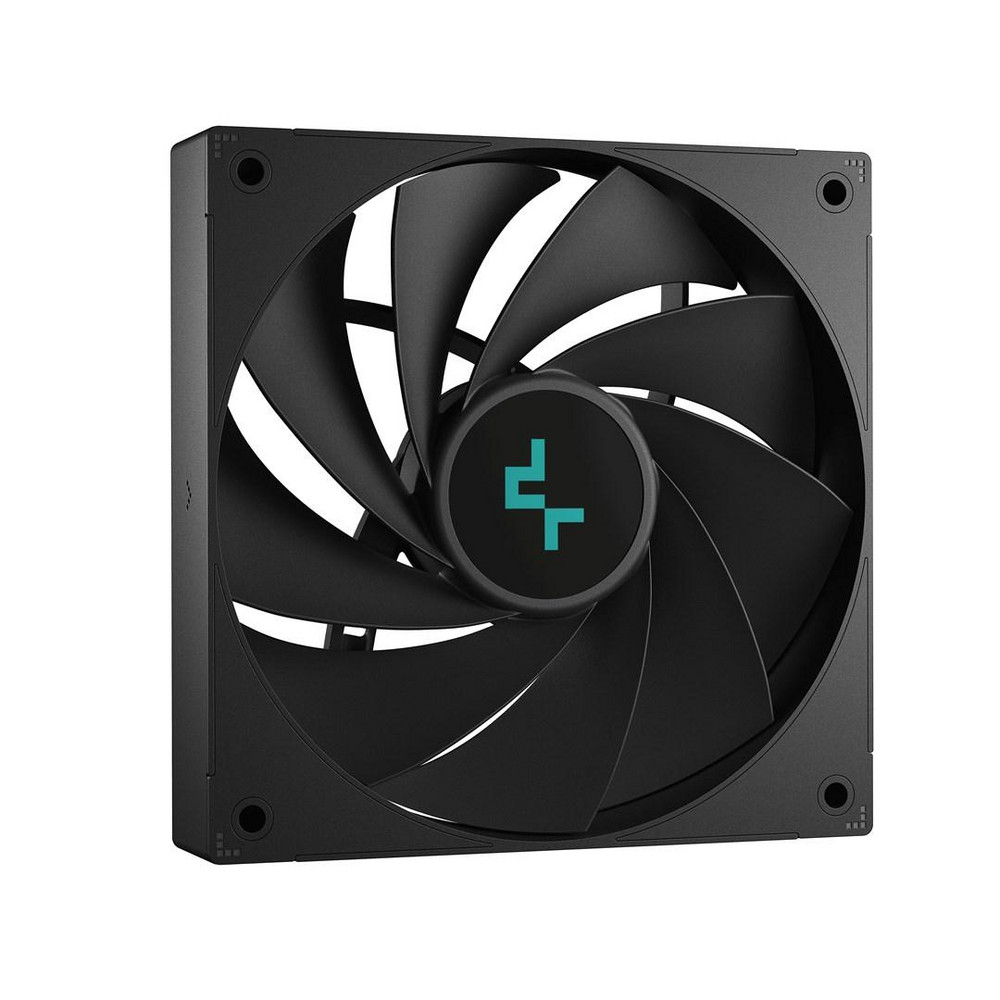

| Fan dimensions (W x D x H) | 140 x 140 x 25 mm | |
| Radiator depth | 11 cm | |
| Maximum air pressure | 3.76 mmH2O | |
| Pulse-width modulation (PWM) support | Yes | |
| Supported processor sockets | LGA 1150 (Socket H3) LGA 1851 LGA 1200 (Socket H5) | |
| Fan 2 dimensions (W x D x H) | 120 x 120 x 25 mm | |
| Fan 2 maximum airflow | 58.06 cfm | |
| Fan 2 maximum air pressure | 2.1 mmH2O | |
