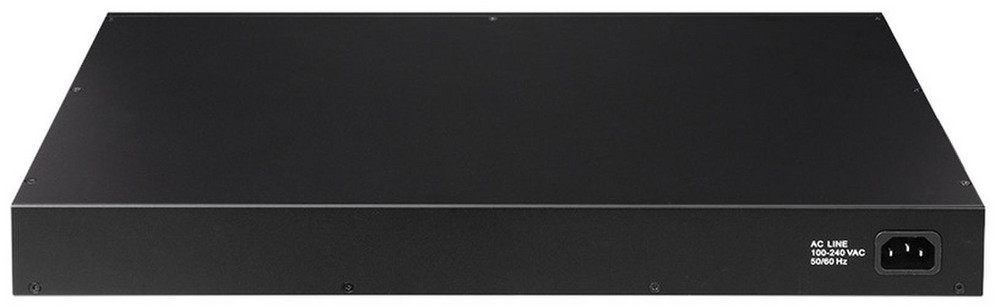

| Power connector | AC-in jack | |
|---|---|---|
| Console port | RJ-45 | |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) | |
| Switch layer | L2 | |
| Switch type | Managed | |
| Form factor | 1U | |
| Storage relative humidity (H-H) | 10 - 90 | |
| Operating relative humidity (H-H) | 10 - 90 | |
| Storage temperature (T-T) | -40 - 70 | |
| Operating temperature (T-T) | 0 - 50 | |
| AC input frequency | 50/60 | |
| AC input voltage | 100 - 240 | |
| Harmonized System (HS) code | 85176990 | |
| Certification | FCC Class A, CE | |
| Power over Ethernet (PoE) | Yes | |
| Packet forwarding rate (10 Mbps) | 14880 pps | |
| Package width | 3.75 mm | |
| Weight | 5.199 kg | |
| Height | 45 mm | |
| Depth | 270 mm | |
| Width | 441 mm | |
| Total Power over Ethernet (PoE) budget | 400 W | |
| Power over Ethernet (PoE) power per port | 30 W | |
| Number of fans | 2 fan(s) | |
| Package height | 0.9 mm | |
| Packet forwarding rate (100 Mbps) | 148800 pps | |
| Packet forwarding rate (1 Gbps) | 1448000 pps | |
| Jumbo frames | 12000 | |
| Forwarding rate | 95.2 Mpps | |
| Switching capacity | 128 Gbit/s | |
| MAC address table | 16000 entries | |
| Number of VLANs | 200 | |
| Installed SFP+ modules quantity | 4 | |
| VLAN support | Yes | |
| Power supply included | Yes | |
| Firmware upgradeable | Yes | |
| Stackable | Yes | |
| Rack mounting | Yes | |
| Static port security | Yes | |
| IGMP snooping | Yes | |
| Access Control List (ACL) | Yes | |
| Jumbo frames support | Yes | |
| Basic switching RJ-45 Ethernet ports quantity | 24 | |
| Broadcast storm control | Yes | |
| Port mirroring | Yes | |
| 10G support | Yes | |
| System event log | Yes | |
| ARP inspection | Yes | |
| Web-based management | Yes | |
| Quality of Service (QoS) support | Yes | |
| Package depth | 5.1 mm | |
| Networking standards | IEEE 802.1w, IEEE 802.3x, IEEE 802.3u, IEEE 802.3a | |
| LED indicators | Status, Power, Link, Activity | |
| Product colour | Black | |
| IPv4 & IPv6 features | Dual stack IPv4/IPv6 | |
| DHCP features | DHCP snooping | |
| Virtual LAN features | VLAN Identifier ( VLAN ID) | |
| Brūkšninis kodas | 4717964703743 | |
