• Total power
    300 W
  • Efficiency
    90.6 %
  • Power Factor Correction (PFC) type
    Active
  • Peak power
    350 W
  • Hold time
    29 ms
  • Power factor
    0.98
  • Combined power (+3.3V)
    103 W
  • Combined power (+12V)
    288 W
  • Combined power (+5V)
    103 W
  • Max output current (+3.3V)
    18 A
  • Max output current (+5V)
    18 A
  • Max output current (-12V)
    0.3 A
  • Max output current (+5Vsb)
    3 A
  • Input current
    4/2
  • AC input frequency
    50/60
  • AC input voltage
    100 - 240
  • Max output current (+12V2)
    13 A
  • Max output current (+12V1)
    13 A
  • Maximum input current (@110V)
    4 A
  • Maximum input current (@220V)
    2 A
  • Motherboard power connector
    20+4 pin ATX
  • Floppy drive power connector
    1
  • Number of SATA power connectors
    3
  • Peripheral (Molex) power connectors (4-pin)
    2
  • CPU P4 connector (4-pin)
    1
  • PCI Express power connectors (6+2 pin)
    1
  • Cabling type
    Non-Modular
  • Motherboard power cable length
    350 mm
  • CPU power cable length
    350 mm
  • PCI Express power cable length
    400 mm
  • Floppy disk drive cable length
    600 mm
  • Purpose
    PC
  • 80 PLUS certification
    80 PLUS Gold
  • Mean time between failures (MTBF)
    100000 h
  • Safety
    CE, CB, TÜV, CU

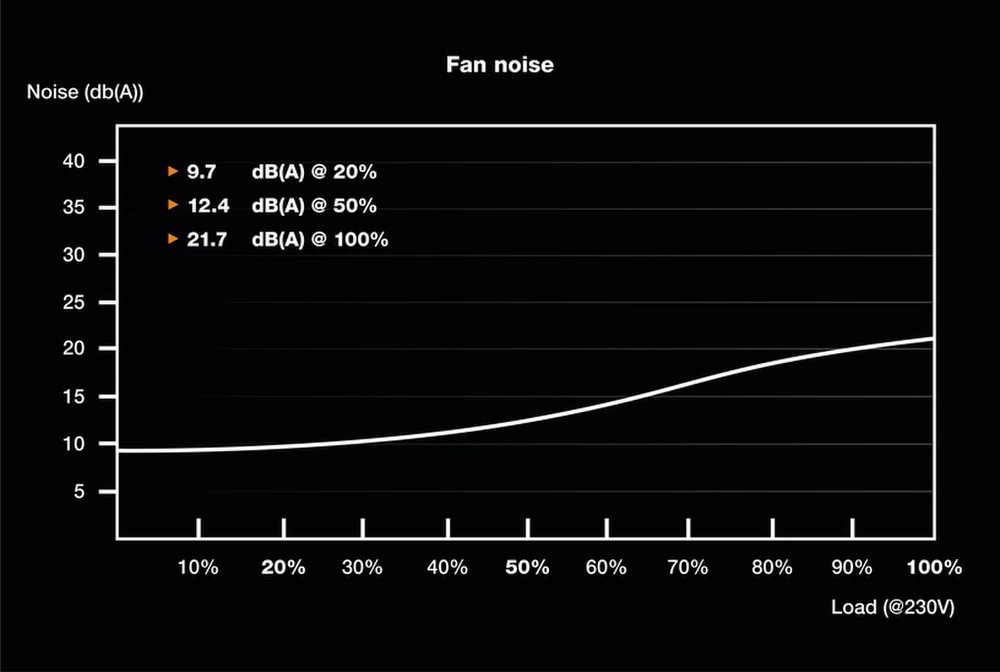

  • Noise level
    21.7 dB
  • ATX version
    2.52
  • EPS version
    2.92
  • Power supply unit (PSU) form factor
    TFX
  • Fan diameter
    80 mm
  • Number of fans
    1 fan(s)
  • Cooling type
    Active
  • Sustainability compliance
    Yes
  • Weight
    3.799 kg
  • Height
    65 mm
  • Depth
    175 mm
  • Width
    85 mm
  • Package type
    Box
  • Package weight
    1430 g
  • Package height
    1 mm
  • Package depth
    5.2 mm
  • Package width
    3.4 mm
  • Harmonized System (HS) code
    84733020
  • Shipping (inner) case gross weight
    9390 g
  • Products per shipping (inner) case
    6 pc(s)
  • Shipping (inner) case height
    195 mm
  • Shipping (inner) case width
    275 mm
  • Shipping (inner) case length
    474 mm
  • Power protection features
    Under voltage, Short circuit, Over voltage, Over p
  • SATA power cable length
    600, 300, 450
  • Peripheral (Molex) power cable length
    300, 450
  • Product colour
    Black
  • Sustainability certificates
    ENERGY STAR, ErP, RoHS, WEEE
  • Brūkšninis kodas
    4260052188293

PREKĖS SAVYBĖS

Produkto tipasMaitinimo blokas
Formos faktoriusTFX
SerijaBūkite tylūs! TFX Power
Ryšys
PCI Express jungtys (8 kontaktų)2
Serial ATA jungtys3
Kabelių valdymasNemodulinis
Pagrindinės plokštės maitinimo jungtysATX12V / EPS12V (4 Pins)
Maitinimas
Tinklo įtampa100 - 240 Volt
Maitinimo tinklo dažnis50 - 60 Hz
Funkcijos
Maitinimas300 Watt
Didžiausia. Galia350 Watt
Sertifikatai80 Plus Gold
Triukšmo skleidimas21.7 dB
MTBF100 000 valandų
Aušinimas ir ventiliatoriai
Ventiliatoriaus skersmuo80 mm
Matmenys ir svoris
SpalvaJuoda
Svoris1.1 kg
Brūkšninis kodas4260052188293
