| Total power | 850 W | |
|---|---|---|
| Efficiency | 90 % | |
| Power Factor Correction (PFC) type | Active | |
| Hold time | 16 ms | |
| Power factor | 0.9 | |
| Combined power (+3.3V) | 120 W | |
| Combined power (+12V) | 846 W | |
| Combined power (+5V) | 120 W | |
| Combined power (-12V) | 3.6 W | |
| Combined power (+5Vsb) | 15 W | |
| Max output current (+3.3V) | 20 A | |
| Max output current (+12V) | 70.5 A | |
| Max output current (+5V) | 20 A | |
| Max output current (-12V) | 0.3 A | |
| Max output current (+5Vsb) | 3 A | |
| AC input frequency | 50/60 | |
| AC input voltage | 100 - 240 | |
| Maximum input current (@110V) | 12 A | |
| Maximum input current (@220V) | 6 A | |

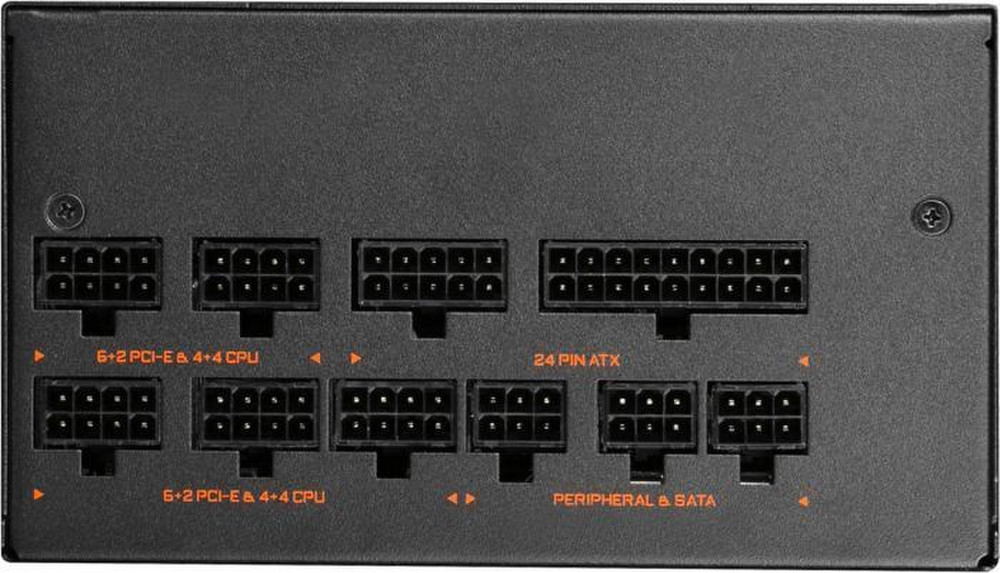

| Motherboard power connector | 20+4 pin ATX | |
| Floppy disk drive connector | Yes | |
| Floppy drive power connector | 2 | |
| Number of SATA power connectors | 8 | |
| Peripheral (Molex) power connectors (4-pin) | 3 | |
| ATX power connector (20+4 pin) | Yes | |
| CPU power connector (4+4 pin) | Yes | |
| PCI Express power connectors (6+2 pin) | 4 | |
| Cabling type | Modular | |
| Motherboard power cable length | 610 mm | |
| CPU power cable length | 600 mm | |
| PCI Express power cable length | 750 mm | |
| Floppy disk drive cable length | 890 mm | |
| 80 PLUS certification | 80 PLUS Gold | |
| Purpose | PC | |
| Mean time between failures (MTBF) | 100000 h | |
| ATX version | 2.31 | |
| Power supply unit (PSU) form factor | ATX | |
| Fan diameter | 120 mm | |
| Number of fans | 1 fan(s) | |
| Cooling type | Active | |

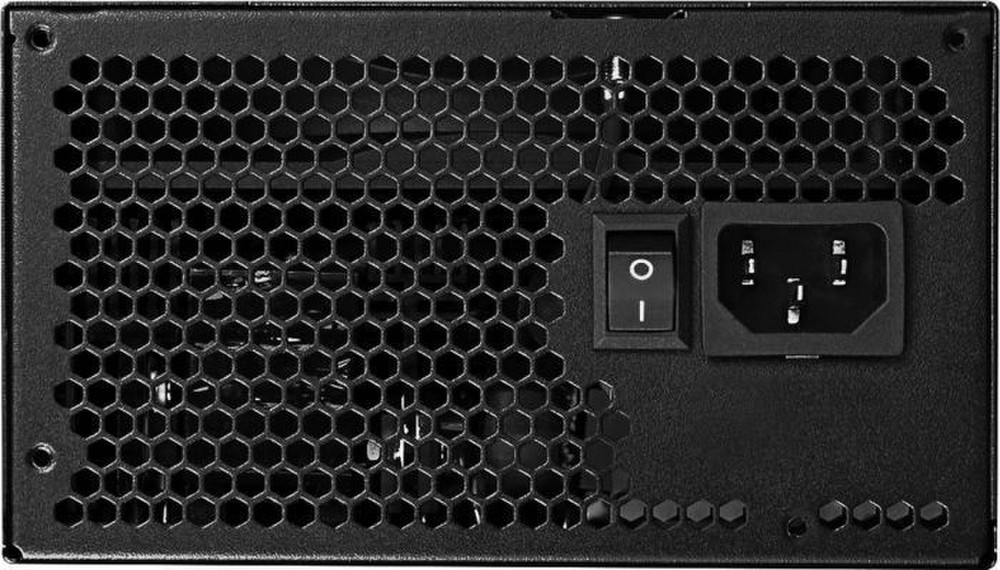

| On/off switch | Yes | |
| Weight | 2.512 kg | |
| Height | 86 mm | |
| Depth | 140 mm | |
| Width | 150 mm | |
| Package depth | 2.55 mm | |
| Package height | 1.15 mm | |
| Package width | 2.05 mm | |
| Package type | Box | |
| Harmonized System (HS) code | 84733020 | |
| Power protection features | Over voltage, Over power, Under voltage, Over curr | |
| SATA power cable length | 600, 750, 900 | |
| Fan location | Top | |
| Product colour | Black | |
